WELLSUNFAN EC12038B Cooling Fan

Leave A Message!

Features of EC12038B Cooling Fan

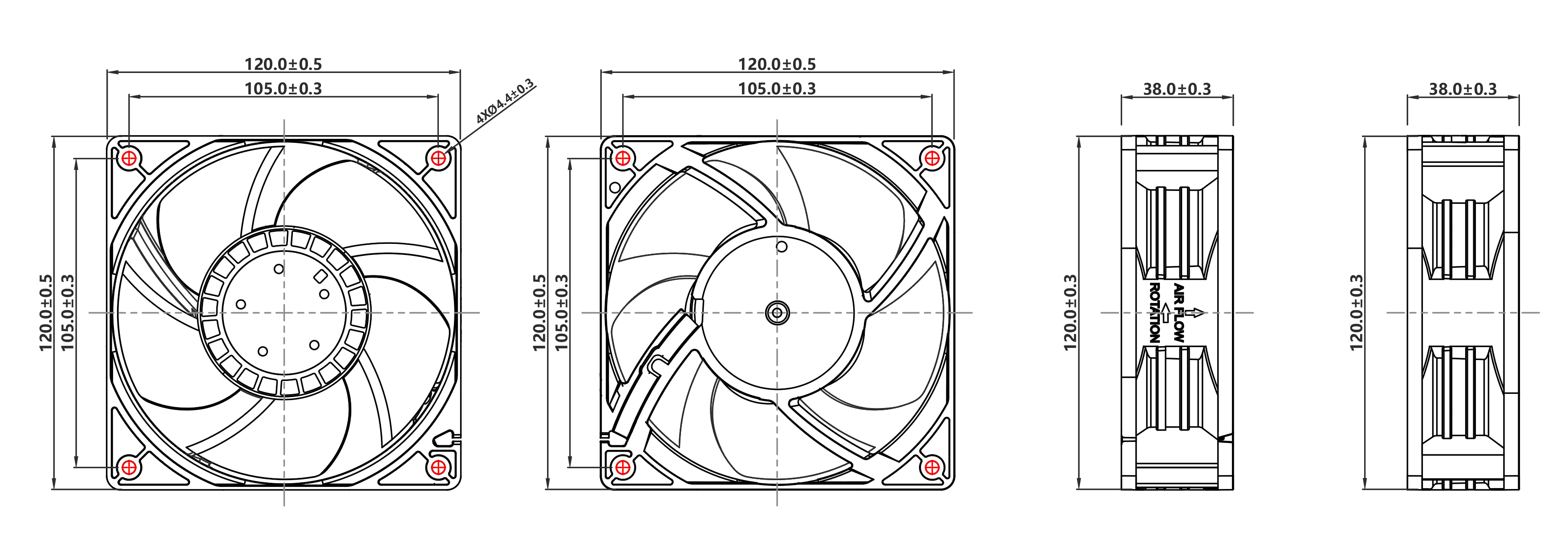

Size: 120x120x38mm(4.7x4.7x1.5inch)
Frame: Plastic UL94V0
Impeller: Plastic UL94V0
Lead Wire: UL1007AWG#22 or Equivalent (+) Red, (-) Black
Bearings: C=Ball Bearing
Life Expectancy: 70,000Hours at 40℃ Ball bearing
Input Voltage: A rated voltage range of 100V~240V (50/60Hz) AC&DC, Rotation speed remains constant even at different input voltages
Dielectric Strength: 1800VAC/SmA/3S (Between input terminal and frame)
Temperature Range: Operating Temperature -25*c~70'C (Non-condensing)
Storage Temperature: -40*C~80*C(Non-condensing)
EC FAN Specials: RD, FG, IP56

Model	Bearing System		Rated Voltage	Operating Voltage	Current	Input Power	Rated Speed	Air Flow	Air Pressure		Noise	Weight
Part No.	S	C	VDC	VDC	A	Watt	R.P.M	CFM	inch-H20	mm-H20	dBA	g
FD08015#12H	√	√	12	7.0~13.8	0.30	3.60	3000	34.09	0.12	0.00	32.6	54.0
FD08015#12M	√	√	12	7.0~13.8	0.20	2.40	2500	28.18	0.09	0.00	28.2	54.0
FD08015#12L	√	√	12	7.0~13.8	0.12	1.44	2000	22.79	0.06	0.00	24.5	54.0
FD08015#24H	√	√	24	14~27.6	0.18	4.32	3000	34.09	0.12	0.00	32.6	54.0
FD08015#24M	√	√	24	14~27.6	0.15	3.60	2500	28.18	0.09	0.00	28.2	54.0
FD08015#24L	√	√	24	14~27.6	0.10	2.40	2000	22.79	0.06	0.00	24.5	54.0
All models could be customized on voltage or any other requirements to fit your need.
