WELLSUNFAN PD06010-A

Leave A Message!

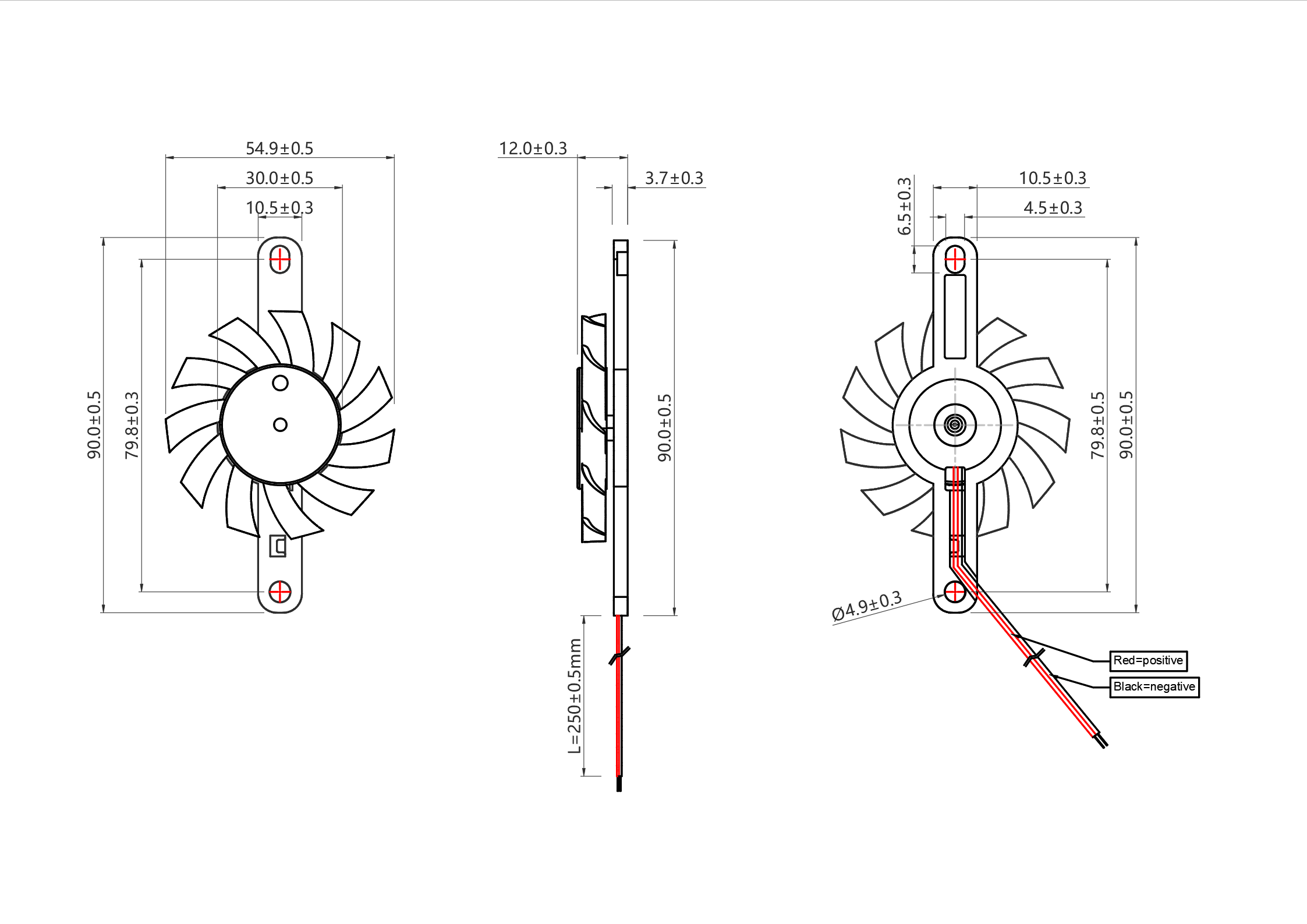

Dimensions Drawing of PD06010-A DC Frameless Cooling Fan

Model	Bearing System		Rated Voltage	Operating Voltage	Current	Input Power	Rated Speed	Air Flow	Air Pressure		Noise	Weight
Part No.	S	C	VDC	VDC	A	Watt	R.P.M	CFM	inch-H20	mm-H20	dBA	g
PD06010#5H	√	√	5	3.5~5.5	0.30	1.50	4000	16.63	0.10	2.54	31.8	26.0
PD06010#5M	√	√	5	3.5~5.5	0.17	0.85	3000	12.34	0.06	1.52	26.4	26.0
PD06010#5L	√	√	5	3.5~5.5	0.10	0.50	2000	7.96	0.03	0.76	21.5	26.0
PD06010#12E	√	√	12	7.0~13.8	0.28	3.36	5000	20.95	0.16	4.06	37.5	26.0
PD06010#12H	√	√	12	7.0~13.8	0.15	1.80	4000	16.63	0.10	2.54	31.8	26.0
PD06010#12M	√	√	12	7.0~13.8	0.08	0.96	3000	12.34	0.06	1.52	26.4	26.0
PD06010#12L	√	√	12	7.0~13.8	0.05	0.60	2000	7.96	0.03	0.76	21.5	26.0
PD06010#24H	√	√	24	14~27.6	0.15	3.60	5000	20.95	0.16	4.06	37.5	26.0
PD06010#24M	√	√	24	14~27.6	0.10	2.40	4000	16.63	0.10	2.54	31.8	26.0
PD06010#24L	√	√	24	14~27.6	0.05	1.20	3000	12.34	0.06	1.52	26.4	26.0
All models could be customized on voltage or any other requirements to fit your need.
