Fan Guard & Grill Size Comparison: 40mm - 180mm Fit, Airflow Impact & Use Cases

Selecting the right cooling fan is only half the battle in thermal management. For engineers and OEM buyers, the secondary challenge is protecting that fan without compromising system efficiency. Whether you are designing a compact 3D printer or a massive industrial UPS cabinet, the choice of a fan guard or grill is critical for safety, durability, and noise control.This guide provides a comprehensive comparison of common fan grill sizes—40mm, 50mm, 70mm, 90mm, and 180mm—and explores how size affects airflow, static pressure, and application-specific performance.

The Engineering Role of Fan Guards in Industrial Systems

A fan guard (or grill) is more than just a metal cover. In high-performance environments, it serves as a critical safety barrier and a structural component. Its primary functions include:

• Safety Compliance: Preventing fingers or tools from contacting high-speed brushless DC or EC fan blades.

• Debris Management: Blocking cables, loose components, or large particles from entering the fan housing, which could cause catastrophic motor failure.

• Structural Integrity: Adding a layer of protection during equipment transit and handling.

However, every wire added to a grill creates a small amount of air resistance. Understanding the balance between protection and airflow is what separates a mediocre thermal design from a high-efficiency one.

Comparative Analysis: Fan Grill Sizes and Their Applications

Different industries require different fan sizes, and consequently, specific grill dimensions. Below is a breakdown of how these sizes are typically deployed.

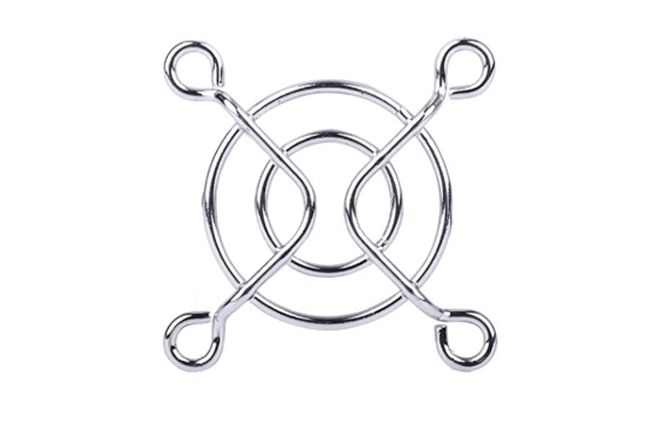

40mm and 50mm Grills: Precision Cooling

The 40mm (F40) and 50mm (F50) sizes are the workhorses of compact electronics. You will find these in 3D printers, VR gaming rigs, and medical diagnostic equipment. Because these fans often run at high RPMs to compensate for their small size, the grill must have a high “open area” ratio to prevent backpressure and whistling noise.

70mm and 90mm Grills: The Industrial Sweet Spot

The 70mm (F70) and 90mm (F90) guards are standard for UPS power supplies, stage lighting, and commercial refrigerators. These systems require a balance of high airflow and low noise. At these sizes, the wire diameter (typically 1.6mm) becomes a factor in mechanical resonance; a poorly made grill will vibrate, adding unwanted decibels to the environment.

180mm Grills: Heavy-Duty Industrial Ventilation

The 180mm (F180) grill is designed for massive air movement. These are used in mining machines, manufacturing plants, and large-scale server rooms. At 180mm, the physical strength of the guard is paramount. It must withstand significant impact and maintain its shape under the high static pressure generated by industrial-grade EC fans.

To simplify the selection process, the following table compares the technical specifications and typical use cases for standard metal mesh covers.

How Guard Design Affects Airflow and Noise

When a fan guard is placed too close to the blades, it creates turbulence. This turbulence manifests as a “hum” or “whistle” and can reduce the effective CFM (Cubic Feet per Minute) of your cooling system.

• Open Area Ratio: Professional-grade grills, such as those manufactured by WELLSUNFAN, are designed with optimized wire spacing to ensure maximum airflow while meeting safety standards.

• Surface Finish: A smooth, glossy copper-nickel-chromium plating doesn’t just look professional; it reduces micro-turbulence compared to rough, unfinished metal.

• Static Pressure: In systems with high-density components (like a mining machine), the fan grill must not add significant static pressure, or the fan will consume more power while providing less cooling.

Why Choose WELLSUNFAN for Your Cooling Accessories?

Founded in Shenzhen in 2011, WELLSUNFAN has grown into a specialized leader in the cooling industry, operating from a modern 10,000-square-meter factory. We don’t just sell fans and cooling fan accessories; we provide integrated thermal solutions supported by a professional team of 300 people. Our strength lies in our rigorous technical standards:

• Precision Manufacturing: With 60 fully automatic injection molding machines and high-speed SMT lines, we ensure every accessory meets tight tolerances (±0.5mm).

• Advanced Testing: We utilize noise testers, air volume and pressure testers, and constant temperature chambers to verify that our fan guards perform under real-world stress.

• Global Reach: With a production capacity of 3 million fans per month, we are strategic partners for world-renowned enterprises across the US, Europe, and Asia.

Conclusion: Optimizing Your Thermal Strategy

Choosing the right fan guard size is a small decision with large consequences for equipment longevity. By matching the correct grill (from 40mm to 180mm) to your specific industry needs, you ensure your system remains cool, quiet, and safe. Contact WELLSUNFAN today for a wholesale quote or technical consultation.
